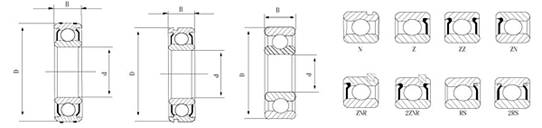

Deep Groove Ball Bearing

Main size(mm)				Load rating(kN)		Maxronout speed(rpm)		Bearing No.	Fixing size(mm)			Weight(kg)
d	D	B	rsimn1)	Cr	Cor	Grease	Oil	Bearing No.	Ds	dh	R	Weight(kg)
10	15	3	0.1	1.01	0.555	36000	42000	6700	10.8	14.2	0.1	0.0015
	19	5	0.3	1.83	0.925	32000	38000	6800	12	17	0.3	0.005
	22	6	0.3	2.7	1.27	30000	36000	6900	12	20	0.3	0.009
	26	8	0.3	4.55	1.96	29000	34000	6000	12.5	23.5	0.3	0.019
	30	9	0.6	5.1	2.39	25000	30000	6200	15	25	0.6	0.032
	35	11	0.6	8.2	3.5	23000	27000	6300	15	30	0.6	0.053
12	18	4	0.2	1.07	0.655	32000	38000	6701	13.6	16.4	0.2	0.003
	21	5	0.3	1.92	1.04	29000	35000	6801	14	19	0.3	0.006
	24	6	0.3	2.89	1.46	27000	32000	6901	14	22	0.3	0.011
	28	7	0.3	5.1	2.39	26000	30000	16001	14.5	15.5	0.3	0.019
	28	8	0.3	5.1	2.39	26000	30000	6001	14.5	25.5	0.3	0.021
	32	10	0.6	6.1	2.75	22000	26000	6201	17	27	0.6	0.037
	37	12	1	9.7	4.2	20000	24000	6301	18	31	1	0.06
15	21	4	0.2	1.15	0.79	29000	34000	6702	16.6	19.4	0.2	0.0035
	24	5	0.3	2.08	1.26	26000	31000	6802	17	22	0.3	0.007
	28	7	0.3	4.1	2.06	24000	28000	6902B	17	26	0.3	0.016
	32	8	0.3	5.6	2.84	22000	26000	16002	17.5	29.5	0.3	0.025
	32	9	0.3	5.6	2.841	22000	26000	6002	17.5	29.5	0.3	0.03
	35	11	0.6	7.75	3.6	19000	23000	6202	20	30	0.6	0.045
	42	13	1	11.4	5.45	17000	21000	6302	21	36	1	0.082
17	23	4	0.2	1.2	0.8654	26000	31000	6703	18.6	21.4	0.2	0.004
	26	5	0.3	2.8	1.72	24000	28000	6803A	19	24	0.3	0.008
	30	7	0.3	4.65	2.58	22000	26000	6903	19	28	0.3	0.018
	35	8	0.3	6.8	3.35	20000	24000	16003	19.5	32.5	0.3	0.032
	35	10	0.3	6.8	3.35	20000	24000	6003	19.5	32.5	0.3	0.039
	40	12	0.6	9.6	4.6	18000	21000	6203	22	35	0.6	0.066
	47	14	1	13.5	6.55	16000	19000	6303	23	41	1	0.115
	62	17	1.1	22.7	10.8	14000	16000	6403	24	55	1	0.27
20	27	4	0.2	1.79	1.32	23000	28000	6704	21.6	25.4	0.2	0.005
	32	7	0.3	4	2.47	21000	25000	6804	22	30	0.3	0.019
	37	9	0.3	6.4	3.7	19000	23000	6904	22.2	35	0.3	0.036
	42	8	0.3	7.9	4.5	18000	21000	16004	25	39.5	0.3	0.051
	42	12	0.6	9.4	5.05	18000	21000	6004	25	37	0.6	0.069
	47	14	1	12.8	6.65	16000	18000	6204	26	41	1	0.106
	50	15	1.1	15.9	7.9	14000	17000	6304	27	45	1	0.144
	72	19	1.1	28.5	13.9	12000	14000	6404	27	65	1	0.4
22	44	12	0.6	9.4	5.05	17000	20000	60/22	27	39	0.6	0.074
	50	14	1	12.9	6.8	14000	17000	62/22	28	44	1	0.117
	56	16	0.1	18.4	9.25	13000	15000	63/22	29	49	1	0.176
25	32	4	0.2	1.93	1.55	19000	23000	6705	26.6	30.4	0.2	1.006
	37	7	0.3	4.3	2.99	18000	21000	6805	27	35	0.3	1.022
	42	9	0.3	7.05	4.55	16000	19000	6905	27	40	0.3	0.042
	47	8	0.3	8.35	5.1	15000	18000	16005	27.5	44.5	0.3	0.06
	47	12	0.6	10.1	9	0.3	7.05	4.55	16000	19000	6905	27	40	0.3	0.042
	47	8	0.3	8.35	5.1	15000	18000	16005	27.5	44.5	0.3	0.06
	47	12	0.6	10.1	5.85	15000	18000	6005	30	42	0.6	0.08
	52	15	1	14	7.85	13000	15000	6205	31	46	1	0.128
62	17	1.1	21.2	10.9	12000	14000	6305	32	55	1	0.232
80	21	1.5	34.5	17.5	10000	12000	6405	33.5	71.5	1.5	0.53

	Deep Groove Ball Bearings
