Deep Groove Ball Bearing

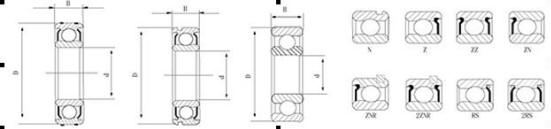

Main size(mm)				Load rating(kN)		Maxronout speed(rpm)		Bearing No.	Fixing size(mm)			Weight(kg)
d	D	B	rsimn1)	Cr	Cor	Grease	Oil	Bearing No.	Ds	dh	R	Weight(kg)
28	52	12	0.6	12.5	7.4	14000	16000	60/28	33	47	0.6	0.098
	58	16	1	17.9	9.75	12000	14000	62/28	34	52	1	0.171
	68	18	1.1	26.7	14	11000	13000	63/28	35	61	1	0.284
30	37	4	0.2	2.05	1.78	17000	20000	6706	31.6	35.4	0.2	0.008
	42	7	0.3	4.7	3.65	15000	18000	6806	32	40	0.3	0.026
	47	9	0.3	7.25	5	14000	17000	6906	32	45	0.3	0.048
	55	9	0.3	11.2	7.35	13000	15000	1606	32.5	52.5	0.3	0.091
	55	13	1	13.2	8.3	13000	15000	6006	36	49	1	0.116
	62	16	1	19.5	11.3	11000	13000	6206	36	56	1	0.199
	72	19	1.1	26.7	15	10000	12000	6306	37	65	1	0.36
	90	23	1.5	43.5	23.9	8800	10000	6406	38.5	81.5	1.5	0.735
32	58	13	1	15.1	9.15	12000	15000	60/32A	38	52	1	0.129
	65	17	1	20.7	11.6	11000	12000	62/32	38	59	1	0.226
	75	20	1.1	29.8	16.9	9500	11000	63/32	39	68	1	0.382
35	47	7	0.3	4.9	4.05	13000	16000	6807	37	45	0.3	0.029
	55	10	0.6	11.2	7.45	12000	15000	6907A	39	51	0.6	0.074
	62	9	0.3	11.7	8.2	12000	14000	16007	37.5	59.5	0.3	0.11
	62	14	1	16	10.3	12000	14000	6007	41	56	1	0.155
	72	17	1.1	25.7	15.3	9800	11000	6207	42	65	1	0.288
	80	21	1.5	33.5	19.1	8800	10000	6307	43.5	71.5	1.5	0.457
	100	25	1.5	55	31	7800	9100	6407	43.5	91.5	1.5	0.952
40	52	7	0.3	5.1	4.4	12000	14000	6808	42	50	0.3	0.033
	62	12	0.6	14.6	10.2	11000	13000	6908A	44	58	0.6	0.11
	68	9	0.6	12.6	9.65	10000	12000	16008	42.5	65.5	0.3	0.125
	68	15	1	16.8	11.5	10000	12000	6008	46	62	1	0.19
	80	18	1.1	29.1	17.8	8700	10000	6208	47	73	1	0.366
	90	23	1.5	40.5	24	7800	9200	6308	48.5	81.5	1.5	0.63
	110	27	2	63.5	36.5	7000	8200	6408	50	100	2	1.23
45	58	7	0.3	6.4	5.65	11000	12000	6809A	47	56	0.3	0.04
	68	12	0.6	15.1	11.2	9800	12000	6909A	49	64	0.6	0.128
	75	10	0.6	12.9	10.5	9200	11000	16009	50	70	0.6	0.171
	75	16	1	21	15.1	9200	11000	6009	51	69	1	0.237
	85	19	1.1	32.5	20.4	7800	9200	6209	52	78	1	0.398
	100	25	1.5	53	32	7000	8200	6309	53.5	91.5	1.5	0.814
	120	29	2	77	45	6300	7400	6409	55	110	2	1.53
	65	7	0.3	6.6	6.1	9600	11000	6810	52	63	0.3	0.052
50	72	12	0.6	15.6	12.2	8900	11000	6910B	54	68	0.6	0.132
	80	10	0.6	13.2	11.3	8400	9800	16010	55	75	0.6	0.18
	80	16	1	21.8	16.6	8400	9800	6010	56	74	1	0.261
	90	20	1.1	35	23.2	7100	8300	6210	57	83	1	0.454
	110	27	2	62	38.5	6400	7500	6310	60	100	2	1.07
	130	31	2.1	83	49.5	5700	6700	6410	62	118	2	1.88

	Deep Groove Ball Bearings
