BEARING TOLERANCE |
|
|
|||||||||||||
|
|
|
|
|
|||||||||||
|
|
|
|||||||||||||
Tolerances for tapered roller bearings(Metric Size) |
|
|
|||||||||||||
Inner ring and Bearing width |
|
|
|
unit:μm |
|||||||||||
d mm |
△dmp |
Vdp |
Vdmp |
△Bs |
Kia |

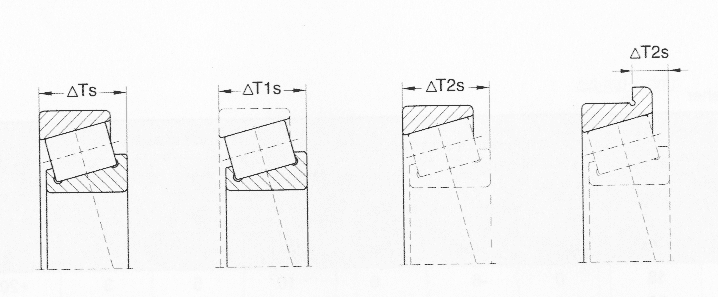

△Ts |
△T1s |
△T2s |
|||||||
over |
incl. |
high |
low |
max |
max |
high |
low |
max |
high |
low |
high |
low |
high |
low |
|
18 |
30 |
0 |
-12 |
12 |
9 |
0 |
-120 |
18 |
+200 |
0 |
+100 |
0 |
+100 |
0 |
|
30 |
50 |
0 |
-12 |
12 |
9 |
0 |
-120 |
20 |
+200 |
0 |
+100 |
0 |
+100 |
0 |
|
50 |
80 |
0 |
-15 |
15 |
11 |
0 |
-150 |
25 |
+200 |
0 |
+100 |
0 |
+100 |
0 |
|
80 |
120 |
0 |
-20 |
20 |
15 |
0 |
-200 |
30 |
+200 |
-200 |
+100 |
-100 |
+100 |
-100 |
|
|
|||||||||||||||
Tolerances for tapered roller bearings(Metric Size) |
|
||||||||||||||
Outer ring and Bearing width |
|
unit:μm |
|
||||||||||||
D mm |
△Dmp |
VDp |
VDmp |
△Cs |
Kea |
|
|
||||||||
over |
incl. |
high |
low |
max |
max |
max |
|
||||||||
30 |
50 |
0 |
-14 |
14 |
11 |
Values are identical to those for inner ring of same bearing (△Bs) |
20 |
|
|||||||
50 |
80 |
0 |
-16 |
16 |
12 |
25 |
|
||||||||
80 |
120 |
0 |
-18 |
18 |
14 |
35 |
|
||||||||
120 |
150 |
0 |
-20 |
20 |
15 |
40 |
|
||||||||
150 |
180 |
0 |
-25 |
25 |
19 |
45 |
|
||||||||
|
|||||||||||||||
Tolerances for tapered roller bearings(Inch Size) |
|
||||||||||||||
Inner ring and Bearing width |
|
unit:μm |
|
||||||||||||
d mm |
△ds |
△Ts |
|
||||||||||||
|
|||||||||||||||
over |
incl. |
high |
low |
high |
low |
|
|||||||||
- |
76.2 |
+13 |
0 |
+203 |
0 |
|
|||||||||
76.2 |
101.6 |
+25 |
0 |
+356 |
-254 |
|
|||||||||
101.6 |
266.7 |
+25 |
0 |
+356 |
-254 |
|
|||||||||
|
|
||||||||||||||
Tolerances for tapered roller bearings(Inch Size) |
|
||||||||||||||
Outer ring and Bearing width |
|
unit:μm |
|
||||||||||||
D mm |
△Ds |
Kia1 Ksa1 Sia Sea |
|
||||||||||||
|
|||||||||||||||
over |
incl. |
high |
low |
max |
|
||||||||||
- |
266.7 |
+25 |
0 |
51 |
|
||||||||||
266.7 |
304.8 |
+25 |
0 |
51 |
|
||||||||||
304.8 |
609.6 |
+51 |
0 |
51 |
|
|
|
|
|
|
|
|
|
