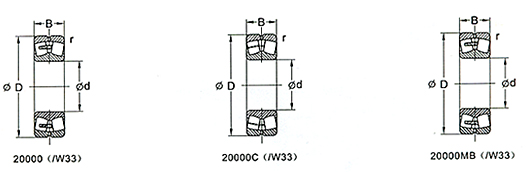

SPHERICAL ROLLER BEARINGS
Principal dimensions (mm)
Weight
Bearing No.
d
D
B
r min
W(kg)
Cylindrical Tapered Bore
25
52
18.0
1.0
0.17
22205C
30
62
20.0
1.0
0.27
22206MB W33
35
72
23.0
1.1
0.39
22207MB W33
40
80
23.0
1.1
0.47
22208MB W33
22208MBK W33
90
33.0
1.5
0.96
22308MB W33
45
85
23.0
1.1
0.52
22209MB W33
100
36.0
1.5
1.28
22309MB W33
50
90
23.0
1.1
0.56
22210MB W33
22210MBK W33
110
40.0
2.0
1.69
22310MB W33
55
100
25.0
1.5
0.76
22211MB W33
120
43.0
2.0
2.16
22311MB W33
60
110
28.0
1.5
1.04
22212MB W33
22212MBK W33
130
46.0
2.1
2.72
22312MB W33
65
120
31.0
1.5
1.43
22213MB W33
140
48.0
2.1
3.59
22313MB W33
70
125
31.0
1.5
1.51
22214MB W33
22214MBK W33
150
51.0
2.1
4.39
22314MB W33
75
130
31.0
1.5
1.51
22215MB W33
160
55.0
2.1
4.96
22315MB W33
80
140
33.0
2.0
1.90
22216MB W33
22216MBA W33
170
58.0
2.1
6.41
22316MB W33
85
150
36.0
2.0
2.41
22217MB W33
180
60.0
3.0
7.33
22317MB W33
90
160
40.0
2.0
3.11
22218MB W33
22218MBK W33
160
52.4
2.0
4.51
23218MB W33
190
64.0
3.0
8.06
22318MB W33
95
170
43.0
2.1
3.82
22219MB W33
200
67.0
3.0
9.29
22319MB W33
22319MBK W33
100
150
50.0
1.5
3.08
24020CA W33
165
52.0
2.0
4.35
23120CA W33
180
46.0
2.1
4.62
22220MB W33
180
60.3
2.1
6.58
23220CA W33
23220CAK W33
215
73.0
3.0
12.00
22320MB W33
110
170
45.0
2.0
3.75
23022CA W33
23022CAK W33
170
60.0
2.0
4.94
24022CA W33
Principal dimensions (mm)
Weight
Bearing No.
d
D
B
r min
W(kg)
Cylindrical Tapered Bore
110
180
56.0
2.0
5.70
23122CA W33
180
69.0
2.0
6.48
24122CA W33
200
53.0
2.1
6.77
22222CA W33
22222MBK W33
200
69.8
2.1
9.54
23222CA W33
240
80.0
3.0
17.00
22322CA W33
120
180
46.0
2.0
4.11
23024CA W33
180
60.0
2.0
5.33
24024CA W33
24024CAK W33
200
62.0
2.0
7.84
23124CA W33
200
80.0
2.0
10.00
24124CA W33
215
58.0
2.1
8.45
22224MB W33
215
76.0
2.1
12.10
23224CA W33
23224CAK W33
260
86.0
3.0
22.60
22324MB W33
130
200
52.0
2.0
5.98
23026MB W33
200
69.0
2.0
7.84
24026MB W33
210
64.0
2.0
8.68
23126MB W33
210
80.0
2.0
10.70
24126MB W33
23126MBK W33
230
64.0
3.0
10.50
22226MB W33
230
80.0
3.0
14.30
23226CA W33
280
93.0
4.0
28.10
22326MB W33
140
210
53.0
2.0
6.49
23028CA W33
22326MBK W33
210
69.0
2.0
8.37
24028CA W33
225
68.0
2.1
10.50
23128CA W33
225
85.0
2.1
13.00
24128CA W33
250
68.0
3.0
14.50
22228CA W33
24128CAK W33
250
88.0
3.0
18.80
23228CA W33
300
102
4.0
35.50
22328MB W33
150
225
56.0
2.1
7.90
23230CA W33
225
75.0
2.1
10.50
24030CA W33
23230CAK W33
250
80.0
2.1
15.80
23130CA W33
250
100
2.1
19.80
24130MB W33
270
73.0
3.0
18.40
22230MB W33
170
96.0
3.0
24.20
23230CA W33
22230MBK W33
320
108
4.0
41.50
22330CA W33
160
240
60.0
2.1
9.66
23032CA W33
23032CAK W33
240
80.0
2.1
12.70
24032CA W33
Principal dimensions (mm)
Weight
Bearing No.
d
D
B
r min
W(kg)
Cylindrical Tapered Bore
160
270
86.0
2.1
20.30
23132CA W33
270
109
2.1
25.40
24132CA W33
290
80.0
3.0
23.20
22232MB W33
22232MBK W33
290
104
3.0
30.50
23232CA W33
340
114
4.0
49.40
22332CA W33
170
260
67.0
2.1
13.00
23034CA W33
260
90.0
2.1
17.30
24034CA W33
24034CAK W33
280
88.0
2.1
21.80
23134CA W33
280
109
2.1
26.60
24134CA W33
310
86.0
4.0
28.80
22234MB W33
310
110
4.0
36.40
23234CA W33
23234CAK W33
360
120
4.0
57.90
22334MB W33
180
280
74.0
2.1
17.10
23036CA W33
280
100
2.1
22.70
24036CA W33
300
96.0
3.0
27.50
23136CA W33
23136CAK W33
300
118
3.0
33.10
24136CA W33
320
86.0
4.0
30.20
22236MB W33
320
112
4.0
38.90
23236CA W33
380
126
4.0
67.00
22336MB W33
22336MBK W33
190
290
75.0
2.1
17.60
23038CA W33
290
100
2.1
23.90
24038CA W33
320
104
3.0
34.50
23138CA W33
320
128
3.0
41.50
24138CA W33
24138CAK W33
340
92.0
4.0
35.50
22238MB W33
340
120
4.0
47.60
23238CA W33
400
132
5.0
78.10
22338MB W33
200
310
82.0
2.1
22.60
23040CA W33
23040CAK W33
310
109
2.1
30.40
24040CA W33
340
112
3.0
42.60
23140CA W33
340
140
3.0
51.30
24140CA W33
360
98.0
4.0
42.70
22240MB W33
22240MBK W33
360
128
4.0
57.10
23240CA W33
420
138
5.0
92.60
22340MB W33
